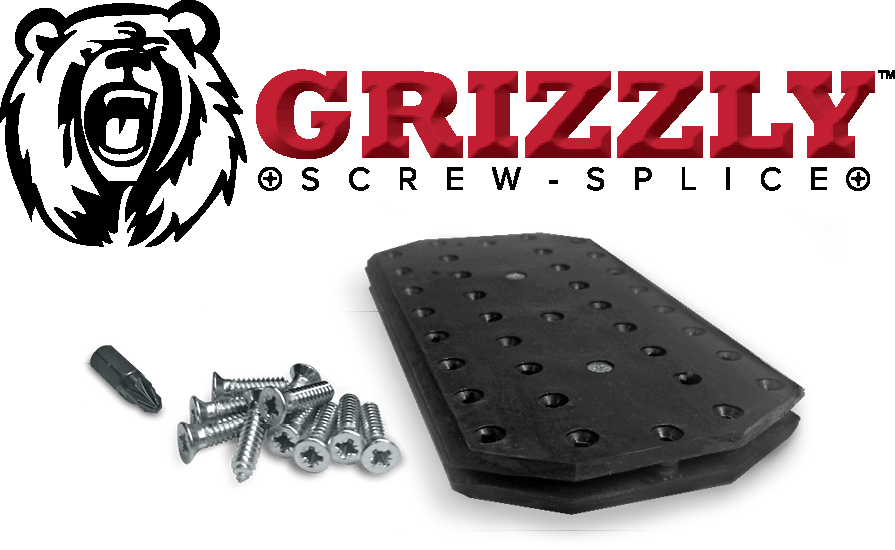

ASGCO®’s Grizzly™ Screw-Splice
The Grizzly™ Screw-Splice conveyor belt splicing and fastening system delivers power, strength, and flexibility in every application. It is the perfect fastener to save you time and money while allowing a quick, accurate, and easy installation. ASGCO®’s Grizzly™ Screw-Splice outperforms competitor’s products by offering more tensile strength and durability.
Design Features
• Quick installation
• No expensive equipment required
• No drilling and no template
• Wear and cut resistant
• High tensile strength
• Strong & Flexible
• High-heat belt up to 400°F (204°C)• Compatible with conveyor belt scrapers
• Leak-proof• Low temp to -20°F (-28°C)
• Available per inch or in complete roll length
Ready to Install

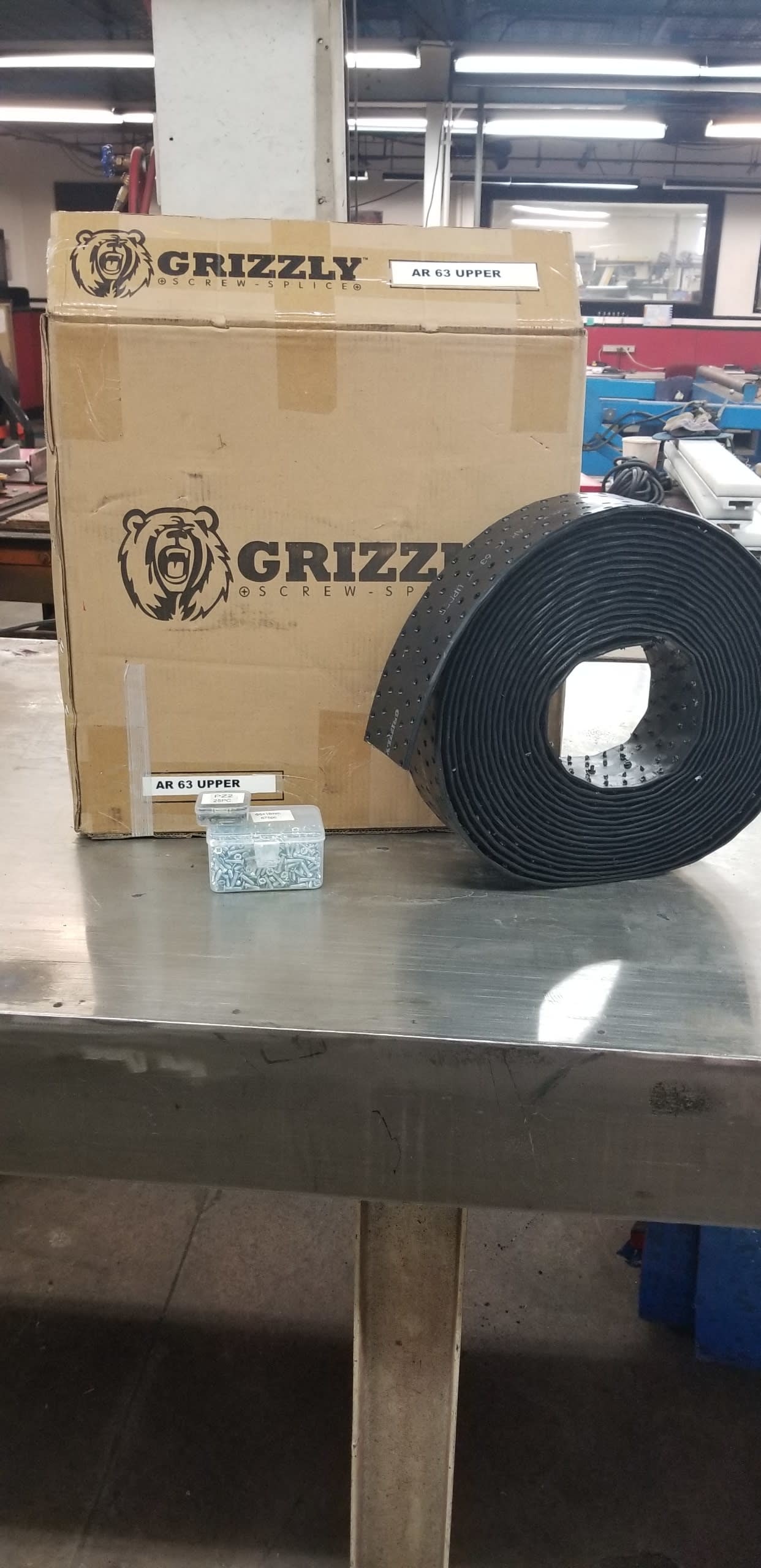

The Grizzly™ Screw-Splice is pre-assembled with the spacers installed, so that the top cover and the bottom cover holes lineup. The Grizzly™ Screw-Splice is delivered with the appropriate number of screws and PZ bits to install the screw splice (matched by inches ordered). It is available in any length between 12 inches up to the length of a roll.
PART NUMBERS
Grizzly™ Screw-Splice
Available per inch or in complete roll length
Abrasion Resistant (AR) • Heat Resistant (HTR) • Low Temperature (LT) • Bare Back (BB) • Stainless Steel (SS)
| PART NUMBER | DESCRIPTION | BELT THICKNESS | PIW | WEIGHT LBS |
|---|---|---|---|---|
| ASG-GSS-63-AR | Abrasion Resistant | 5/32" to 1/2” (3.97 to 12.7 mm) | 375 | - |
| ASG-GSS-63-HTR | Heat Resistant | 5/32" to 1/2” (3.97 to 12.7 mm) | 375 | - |
| ASG-GSS-63-AR-BB | Bare Back | 5/32" to 1/2” (3.97 to 12.7 mm) | 375 | - |
| ASG-GSS-63-AR-SS | Stainless Steel | 5/32" to 1/2” (3.97 to 12.7 mm) | 375 | - |
| ASG-GSS-65-LT | Low Temperature | 5/32" to 1/2” (3.97 to 12.7 mm) | 375 | - |
| ASG-GSS-80-AR | Abrasion Resistant | 5/32" to 19/32” (3.97 to 15.08 mm) | 440 | - |
| ASG-GSS-80-HTR | Heat Resistant | 5/32" to 19/32” (3.97 to 15.08 mm) | 440 | - |
| ASG-GSS-85-LT | Low Temperature | 5/32" to 19/32” (3.97 to 15.08 mm) | 440 | - |
| ASG-GSS-100-AR | Abrasion Resistant | 5/32" to 19/32” (3.97 to 15.08 mm) | 700 | - |
| ASG-GSS-100-HTR | Heat Resistant | 5/32" to 19/32” (3.97 to 15.08 mm) | 700 | - |
| ASG-GSS-180-AR | Abrasion Resistant | 9/32" to 13/16” (7.14 to 20.64 mm) | 1050 | - |
| ASG-GSS-180-HTR | Heat Resistant | 9/32" to 13/16” (7.14 to 20.64 mm) | 1050 | - |
| ASG-GSS-200-AR | Abrasion Resistant | 5/8" - 7/8" (.625 to .875 mm) | 1200 | - |
